The Salto XS4 One S Keypad offers a secure PIN-code smart locking solution for access control, specifically engineered to accommodate ANSI standard doors and mortise locks. Its installation and retrofitting process is straightforward, allowing it to seamlessly replace existing door hardware and adapt to a wide variety of door models and functions.
The lockset functions include both mechanical and electronic options to provide enhanced security, and hereby, it offers a unique combination of functionality. Meanwhile, its sleek design makes it a popular choice among homeowners, which is complemented by its appealing aesthetics.
Base Model:
Product Overview
General Information
Name: SALTO AM950U00IMB38K , U Handle, Black Reader, Satin, SALTO Systems
Category: SALTO Systems, Access Control, Locking Devices, Electronic Locks
UPC Code: 844571516933
Country of Origin: Spain. Country of origin is subject to change.
SALTO XS4 One S ANSI
- A dependable electronic smart lock, crafted from premium stainless steel, is designed for easy installation and compatibility with various door models.
- Features an intuitive capacitive touch keypad with backlighting, providing users with multiple methods for unlocking.
- Unlocking options include a user passcode (PIN), physical credential (SVN), and digital keys via NFC or Bluetooth LE.
- Compatible with Apple Wallet for added convenience.
- The lock indicates authorization status with dual-color feedback, displaying green for access granted and red for access denied.
- Offers a variety of code options tailored for different security needs and purposes.
- Salto standard handles are available to accommodate diverse project specifications.
- Offered in seven sophisticated finishes to complement any door design.
- Specifically designed to ensure both functionality and style in any setting.
Finish
Reader Finish
TECHNICAL CHARACTERISTICS:

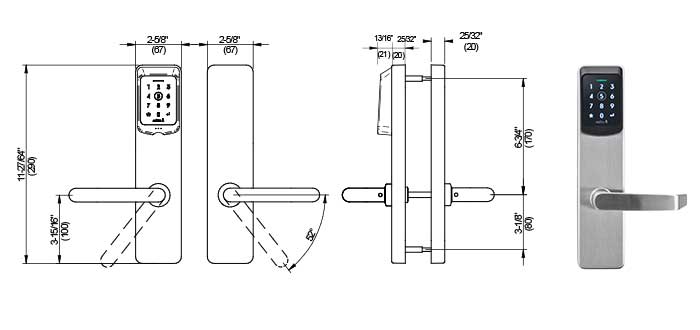

- Housing dimensions: 11-27/64” (290mm) x 2-5/8” (67mm) x 25/32” (20 mm)
- Door thickness: 1-3/8” to 4-3/4” (32 – 120mm)
- Power source: 3 AA batteries (LR6 1,5V)
- Reversible handle left or right smart electronic lock.
- The clutch mechanism escutcheon, specifically, allows the handle to move freely when it is unlocked.
- Handle rotation: 52º
- Mechanical key and override option. Compatible Override Mortise Cylinder length: 1-1/8”
- Compatible with ANSI standard mortise locks and Salto cylindrical and tubular latches.
- Square spindles available: 8mm (5⁄16″), 7mm diamond (9⁄32″), 8mm split (5⁄16″), 7mm diamond split (9⁄32″) and 7,6mm (19⁄64″)
- Not suitable for outdoor use
